24× GbE
4× 1.25G SFP
Fanless and Silent Cooling
L2 Managing Features

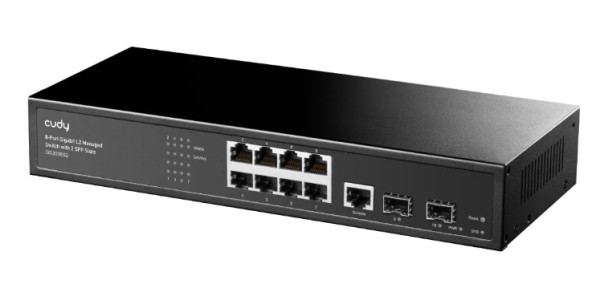

Model Version: GS2008S2

Protocols:

802.3 Protocols:
802.3i 10 Mbps over Twisted Pair
802.3u 100 Mbps over Twisted Pair
802.3ab 1 Gbps over Twisted Pair
802.3z 1.25 Gbps over Fiber
802.3x Flow Control
802.3az Power Saving
802.3ad Active Link Aggregation

802.1 Protocols:
802.1d: STP
802.1s: MSTP
802.1p: LAN Layer 2 Qos/Cos protocol related to traffic priority
802.1q: VLAN Bridge Operation
802.1s: MSTP
802.1w: RSTP
802.1ab: LLDP/LLDP-MED
802.1x User Authentication

Memory/Storage:
Flash/ROM: 16 MB (128 Mbit) NOR
DDR/RAM: 128 MB (1 Gbit) DDR3

Physical Buttons: Reset Button
Gigabit RJ45 Ports: 8
1.25G SFP Slot: 2
Console Ports: 1× RJ45
LED:
-Power
-System
-Speed/Link/ACT of Each Ethernet Port
Power Input: AC Inlet

Copper Speed and Distance:
Cat. 3 or higher cable: 100 meters at 10 Mbps
Cat. 5 or higher cable: 100 meters at 100 Mbps
Cat. 5e or higher cable: 100 meters at Gigabit

MAC Address Table: 8192
VLANs: 4096
Max Switching Capacity: 21 Gbps
Max Forwarding Rate: 15.624 Mpps
Jumbo Frame: 9.6 KB
Packet Buffer: 4 Mbit

Power Methods: AC
AC: 90~260V 50/60Hz

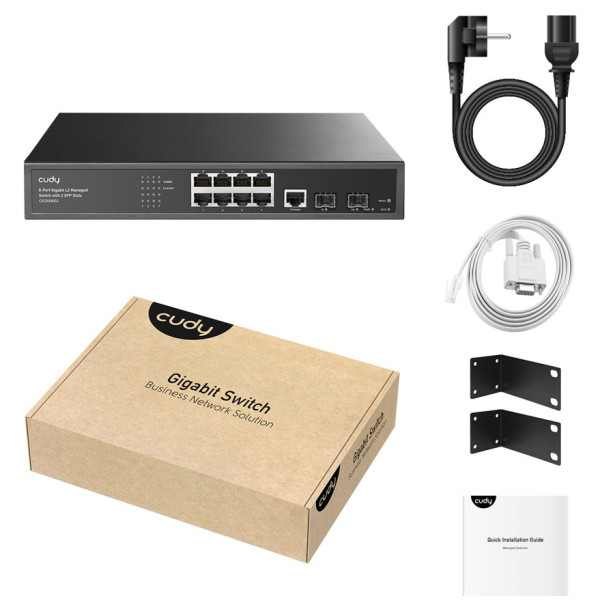

Package Content:
Main Product
Power Cord
Installation Guide
Mounting Kit

Mechanical:
Installation:
Desktop
Rackmount via Brackets
Casing Material: Metal
Dimension:
268×180×44 mm
10.55×7.09×1.73 inches
Product Weight EU: 1002 g (35.34 oz.)

Ordering Information
Retail Package Dimension 312×262×84 mm
12.28×10.31×3.31 inches
