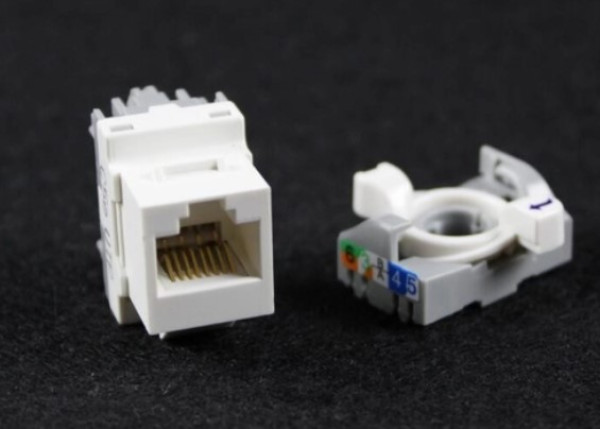

LAN MODUL CAT6A ROTARY LC6A821
- Proizvod iz grupe: Mrezni kablovi koturovi i Konektori
- Dostupna količina: > 10
- EAN: 2000000153452
- Mesto pakovanja artikla: VN0160
Cena:
350 din.
Legrand type
(Rotary type Cat6a Tool-less Kyestone Jack)
Spaja se bez alata
100% passed FLUKE DTX-1800 test,
IDC fits for 22-26 AWG solid wire, Insertion Life:750 times MIN,
Punching Life: 250 times MIN,
Meet TIA/EIA-T568A and T568B category 6A requirements,
It has been designed to exceed TIA/EIA specification.
The bandwidths of category 6A up to 500 MHZ,10Gbps.
Material: Housing Body: PC UL94V-2 (Customized UL94-V0), IDC Housing: PC
IDC Contact: Phosphor Bronze with Nickel Plating 100u“,
Contact Pin: Phosphor Bronze with Gold Plating 3u“-50u“,
Gold Plating Thickness: Default 3u“, customized 6u“-50u“
PCB: FR4 1.6mm(0.04u“) thickness,2 layers
