Motor klizne kapije sa ugrađenom kontrolnom jedinicom H70 i mehaničkim ograničivačem.
Napajanje: 230AC 50Hz
Snaga motora: 240W
Maksimalni potisak: 300N
Termalna zaštita motora: 150 °C
Radna temperatura: -20 - 55 °C
Nivo zaštite: IP43
Brzina manevrisanja: 9.5m/min
Max. težina kapije: 600kg

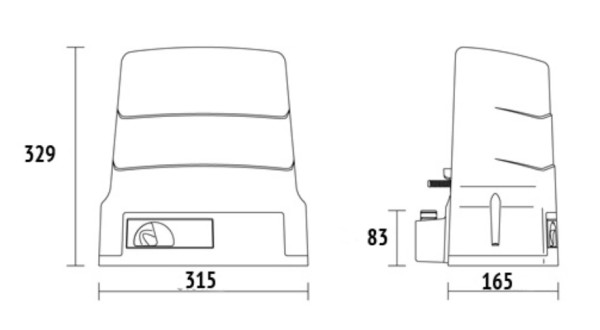

Dimenzije proizvoda u mm: 315x165x329 (dxšxv)

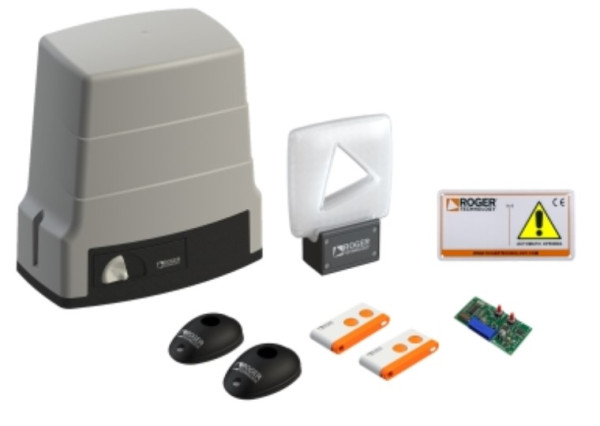

KIT SADRŽI:
Daljinski upravljač T80/TX2 - 2 komada
Prijemnik H93/RX22A/I
Znak R99/C/001
Fot?ćelija R90/F2ES
FIFTY 230V -lampa

Max gate weight: 600 kg
Power line supply: 230V AC - 50Hz
Stand-by consumption: ? 0,5W
Motor power supply: 230V AC
Power rating: 240W
Frequency of use: 50%
Thrust: 300N
Operating temperature: -20+55°C
Protection level: IP44
Reductor Type: Irreversible
Manoeuvre speed: 9.5 m/min (0.16 m/s)
Motor thermal protection: 150°C
Incorporated condenser: 12,5 µF
Limit switch: Mechanical
Onboard control unit: H70/104AC
Encoder: Optical
Type exit gear: Z15/mod 4
Maximum dimension product in mm (L x W x H): 315 x 165,8 x 329
Product weight packed (Kg): 12,1
Number items per pallet/box: 44
