General Feature
Product Type

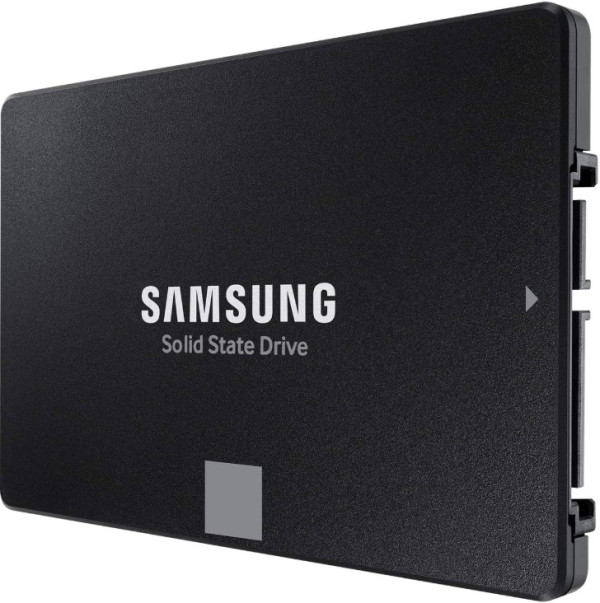

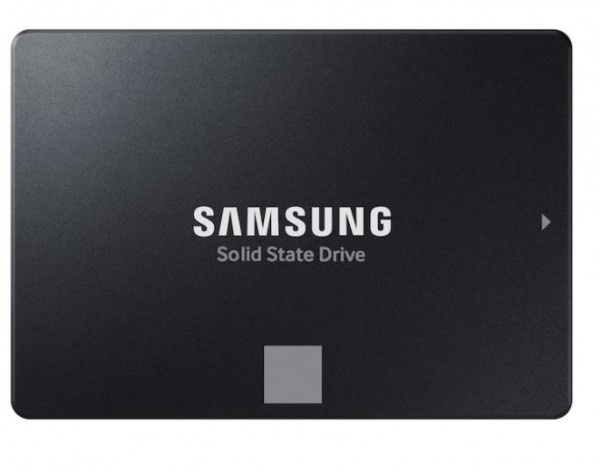

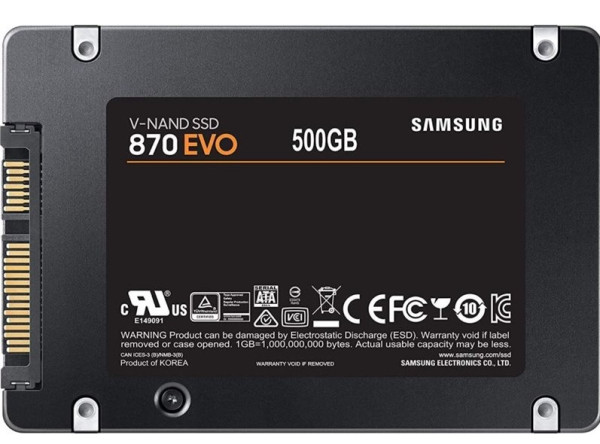

870 EVO SATA 2.5" SSD 500GB

Family Line

870 EVO SATA 2.5" SSD

Capacity
500GB

Interface
SATA 6 Gbps Interface

Compatibility
Windows10/Windows 8/Windows 7/Windows Server 2003 (32 bit and 64 bit), Vista (SP1 and above), XP (SP2 and above), MAC OSX and Linux

Dimension (WxHxD)
3.94" X 2.75 " X 0.27"

Weight
0.19 lbs.

Performance
Speed
Read/write speeds of up to 560/530 MB/s

Encryption
Class 0 (AES 256) TCG/Opal v2.0, MS eDrive (IEEE1667)

Type
Interface
SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface

Usage Application
Client PCs

Storage
Capacity
500 GB (1 GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

Key Features
Sequential Read Speed
Up to 560 MB/s Sequential Read * Performance may vary based on system hardware & configuration

Sequential Write Speed
Up to 530 MB/s Sequential Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated

Cache Memory
Samsung 512 MB Low Power DDR4 SDRAM

Trim Support
TRIM Supported

S.M.A.R.T. Support
S.M.A.R.T Supported

GC (Garbage Collection)
Auto Garbage Collection Algorithm

WWN Support
World Wide Name supported

Device Sleep Mode Support
Yes

General
Average Power Consumption (system level)
Average: 2.2 W *Maximum: 3.5 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration

Power consumption (Idle)
Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration

Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)

Environmental Specs
Shock
1,500 G & 0.5 ms (Half sine)
